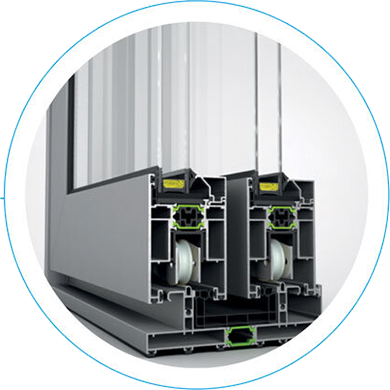

Chassis aluminium ES70
Performance
Air Permeability: up to Class 4
Watertightness: Ε750
Resistance to wind load: C5
Thermal transmittance (Uf): from 2,73 W/(m2K)
Techniques
Elegant straight design
Flat bottom frame option with only 25 mm height
Narrow interlock option
Double & triple glazing option
Glazing infill range: 25 ÷ 52 mm
Hardware
Lift & Slide mechanism
On demand: Max. sash width / height up to 3300 mm / 3300 mm
Max. sash weight: 300 kg
On demand: up to 440 kg
Surface treatment options
RAL colours
ETEM colours
Anodising
Wood effects
Quality Standards: QUALICOAT | QUALANOD | QUALIDECO
