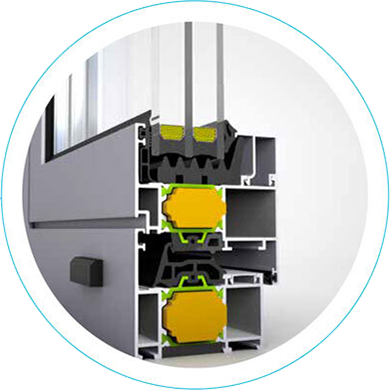

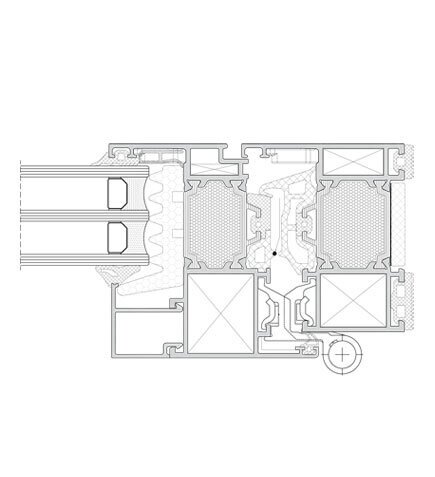

Chassis en aluminium E68

Performance

Air Permeability: up to Class 4

Watertightness: up to Class E1500

Resistance to wind load: up to Class C5

Thermal transmittance (Uf): from 1,7 W/(m2K)

Acoustic performance: up to 44 dB

Techniques

Variety of profiles and gaskets combination

Min. height ( frame+vent): 107mm | Compatible with curtain wall system

Double & triple glazing option

Glazing infill: up to 48mm in frame | Fixed frame (min. depth): 68 mm

Vent frame (min. depth): 77,5 mm | Hidden vent

Energy efficiency concepts: High+, High, Standard+, Standard

Hardware

Eurogroove & PVC groove

Max. vent weight: 170kg

Surface treatment options

RAL colours

ETEM colours

Anodising

Wood effects

Quality Standards: QUALICOAT | QUALANOD | QUALIDECO
